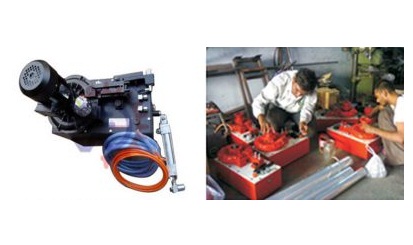

Servicing of Web Aligner System, We Repair and Service all types of Indian & Imported Web Guiding System like E+L Web Guiding System, BST Web Guiding System, Chinese Web Aligner Unit, etc. All Indian & Imported Hydro Pneumatic Web Aligner Power Pack Unit can be repaired by us by replacement of Old Parts with our Brand New Parts in our Factory based in Ahmedabad, Gujarat, India.
TYPE |
KEW–17 |
KEW–30 |
Motor rating (3 phase, 50 Hz) |
0.5 HP |
1HP |
Pump flow rate |
3.4 l/min |
5.8 l/min |
Tank capacity |
17 liters |
30 liters |
Oil type |
Servo 32, Enklo 44, Hydro 37 |
|
Line pressure |
14 bar |
21 bar |
Max. Operation force (50.8 mm dia. Cylinder) |
260kg |
389.5 kg |
Follow-up speed |
|
|
Max. At 3.4 l/min |
30mm/sec |
-- |
At 5.8 l/min |
-- |
40mm/sec |
Air sensor air pressure |
5 to 28 mbar, infinitely adj. |
|
Weight including oil |
40kg |
60kg |
